Pain therapy

Technology

• HILT provides deep, non-invasive pain relief and tissue regeneration without medication.

  High-Intensity Laser Therapy (HILT) is an advanced medical laser treatment that uses high-power laser radiation to deliver therapeutic energy deep into tissues for pain relief, anti-inflammatory action, and tissue regeneration. Unlike low-level laser therapy (LLLT), which is limited to superficial tissues, HILT penetrates deeply and activates biological mechanisms at both the cellular and systemic levels.

  HILT technology delivers controlled, high-intensity laser energy to deep tissue layers, activating biological repair mechanisms while providing fast and lasting pain relief. It combines high power, precision wavelengths, and innovative applicators to treat a wide range of musculoskeletal and neuropathic conditions—without incisions, medications, or downtime.

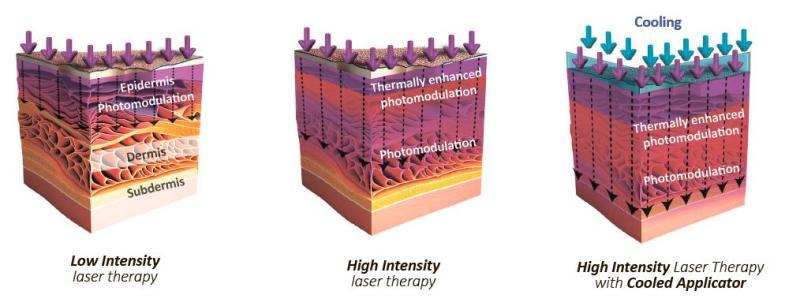

• Clinical comparison: high- and low-intensity laser therapy methods

  Parameter	LLLT<br>(Low-Level Laser Therapy)	HILT<br>(High-Intensity Laser Therapy)	HILT with Cooled Applicator	Dual-Wavelength HILT<br>(e.g., 1.55 µm + 0.98 µm)
  Laser power output	< 500 mW	5–15 W	5–20 W (with cooling)	10–25 W combined
  Wavelengths typically used	630–980 nm	800–1064 nm	970–1064 nm	0.98 µm + 1.55 µm
  Penetration depth	≤10 mm	30–50 mm	Up to 60 mm	Surface to deep (>60 mm)
  Mechanism of action	Photobiomodulation	Photothermal + Photobiomodulation	Photothermal + Photobiomodulation with enhanced control	Combined superficial and deep regeneration
  Primary therapeutic effects	Mild pain relief, tissue stimulation	Strong analgesia, anti-inflammation	Deeper action, greater comfort	Deep tissue regeneration + fast pain reduction
  Treatment time	10–30 min	5–10 min	5–10 min	5–10 min
  Indications	Mild to moderate pain, small areas	Moderate to severe musculoskeletal pain	Moderate to severe musculoskeletal pain with improved heat tolerance	Complex pain, joint/cartilage degeneration
  Thermal control	Passive (low energy)	Limited—requires monitoring	Active (via cooled applicator)	Balanced via wavelength + applicator pairing
  Safety and comfort	High	Moderate (risk of overheating)	High (temperature managed)	High (depth-selective and thermally balanced)
  Clinical versatility	Limited to superficial tissues	Broad applications in rehab and ortho	More adaptable for deep therapy	Highly adaptable (spine, joints, discs, soft tissue)
  Typical recovery impact	Mild improvement	Faster recovery vs. LLLT	Faster, safer recovery	Accelerated healing and long-term pain relief

• The effectiveness of a dual-wavelength laser system combining a 1.55 µm fiber laser and a 0.98 µm diode laser—particularly when paired with specialized applicators—is clinically significant for non-invasive cartilage regeneration and pain therapy. This combination allows for deep, selective energy delivery across multiple tissue layers and supports both biological regeneration and pain modulation.

• HILT with a cooled applicator offers superior treatment flexibility, comfort, and energy control compared to conventional HILT, enabling more effective therapy delivery in sensitive anatomical areas and in patients with low thermal tolerance.

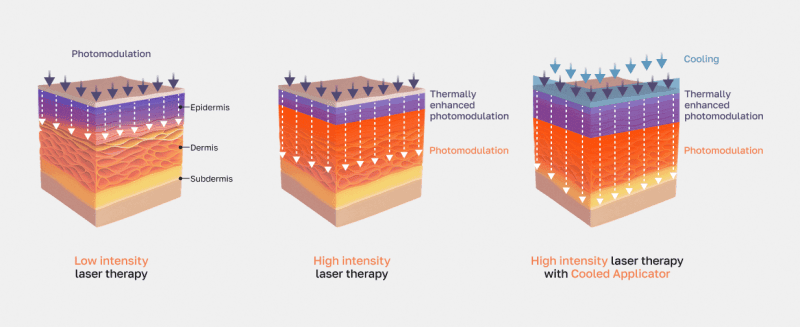

Comparison of laser therapy effectiveness
