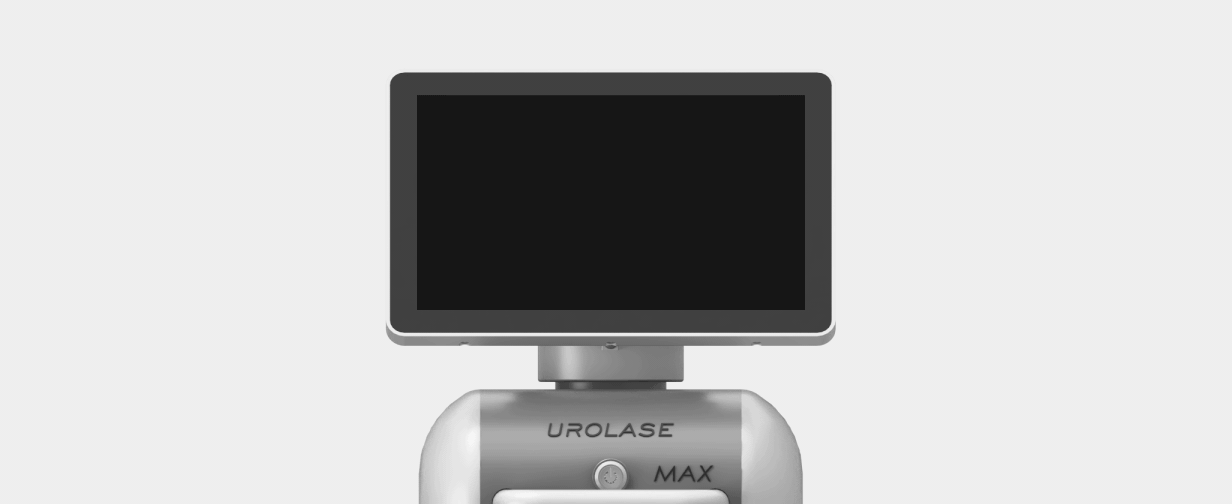

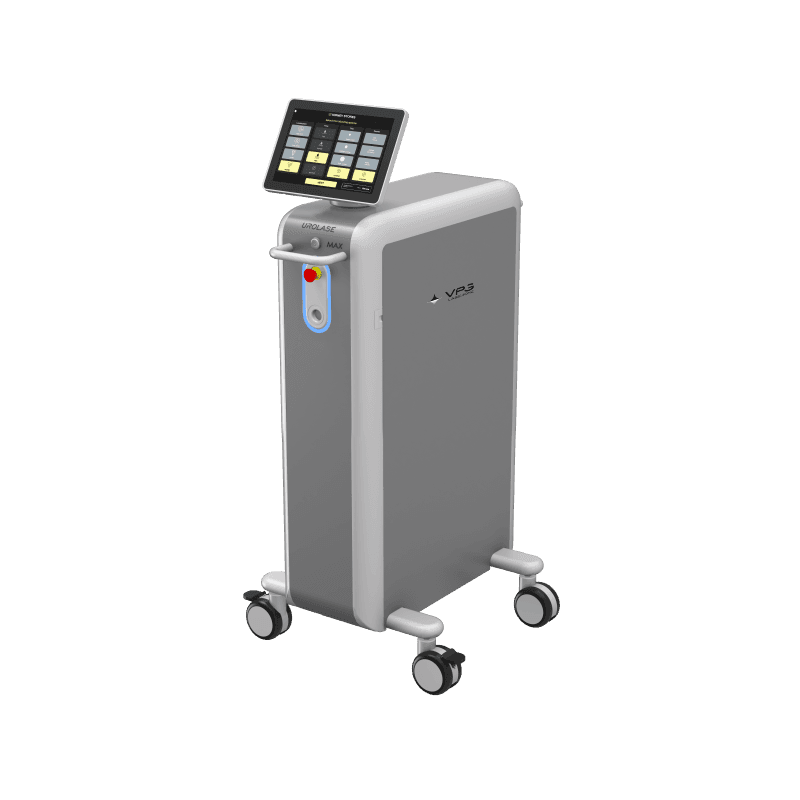

Urolase MAX

All-in-one for urology and endourology laser platform
The first laser system with a built-in surgeon’s assistant function, developed through years of analyzing procedural parameters from a broad range of surgical techniques
01JRG4SEVXYVE0ND9PJN0GXSK8

Product overview

  • 1.94
    μm
    Wavelength
  • 150-940
    μm
    Supported fiber diameter
  • 120
    W
    Max power

Medical specializations

Urolase series is a new generation of thulium fiber lasers (TFL), engineered to meet the evolving needs of urologists with a focus on versatility, precision, and safety.



Designed for both lithotripsy and soft tissue surgery, these systems offer enhanced control, optimized clinical modes, and integration-ready platforms for future functionality expansion.



Urolase MAX is the most powerful TFL system in its class, delivering up to 120 W of average power and supporting pulse energies up to 8 J with repetition rates approaching 5000 Hz. It introduces a high-power "Super Pulsed" mode (Super PALSD)—a new capability that builds on all legacy operating modes from earlier TFL generations, ensuring compatibility with familiar clinical workflows while unlocking advanced performance.

Key advantages

The Tissue Sensor is a real-time safety system that differentiates between stone and soft tissue at the fiber tip. It automatically deactivates laser emission upon detecting soft tissue, reducing the risk of injury and enhancing procedural safety during lithotripsy.
Urolase MAX features the first “Surgeon’s Assistant” in a laser platform—an intelligent system based on global clinical data that optimizes laser settings in real time to enhance safety and ensure consistent, expert-level outcomes.

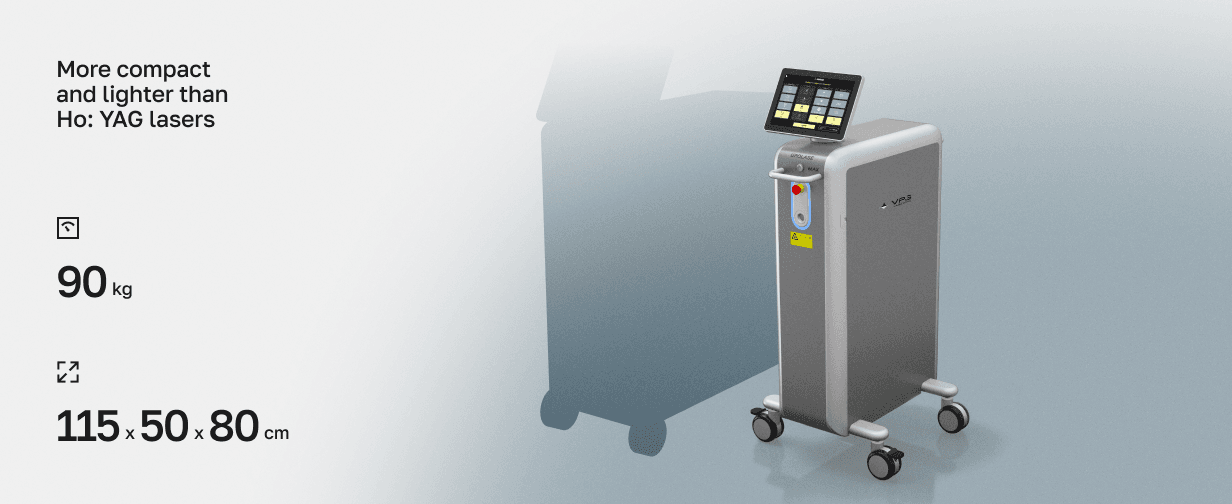

Urolase MAX delivers high power in a compact, lightweight design—occupying half the space of comparable systems—making it ideal for modern operating rooms and outpatient settings, without compromising surgical capability, precision, or reliability.
01JTNM3RJTYX375NGWM9GB6012UVS01JV2FARV2YPVV87GDTJPANG6H
  • image (31)
    One Push Connector: instant, contamination-free fiber connection with auto shutter and status indicator
  • image (55)
    Modulated pulse technology – enables ultra-efficient lithotripsy with “Fine” dusting and “Ultra” fragmentation modes
  • image (19)
    Dual enucleation capability – supports both “Dissect” mode and classic ThuFLEP technique in one device
  • image (59)
    Bloodless coagulation mode – ensures wide-area, non-contact hemostasis with minimal thermal trauma
  • image (24)
    Clean Pulse mode – enables vaporization and vapo-enucleation without carbonization
  • image (50)
    Air-cooled system – efficient thermal management without external water cooling
  • image (49)
    Standard power compatibility: operates on standard 220V—no special infrastructure required
  • image (51)
    Maintenance-free operation – engineered for long-term reliability without routine servicing

How laser works

01JTN10WZS3NM4GRNESE0A2D8S
Secure PCNL with Tissue Sensor: 550 µm fiber, 3 J × 13 Hz (39 W), stone density 1640 HU. Footswitch held continuously; energy auto-interrupted
01JTN1V2STAPSYYWV4409PNXVF
Examination of the mucosa after stone crushing revealed no visible damage
01JTN3R0N7ZKRJVS909PSV3RW0
UltraPulse mode fragmentation during transurethral cystolithotripsy 60 J at 1 Hz (60 W)
01JTN3R0NQ4R8F7QW1CEWFYB6P
UltraPulse mode utilizes thermal stress for efficient and safe stone fragmentation during Percutaneous Nephrolithotripsy (PCNL) at 30 J, 1 Hz (30 W)
01JTTAXNVTDDA8TYE5EHZYFSR1
Standard mode ThuFLEP
01JTTAXNWCS98HQ8FTVZV0H7PN
Enucleation mode «DissectPulse»

Specifications

Technological features

  • Tissue Sensor is a proprietary innovation by VPGLaserOne, developed to maximize safety during stone lithotripsy. It supports the global trend toward minimally invasive, endoscopic treatment of urolithiasis.

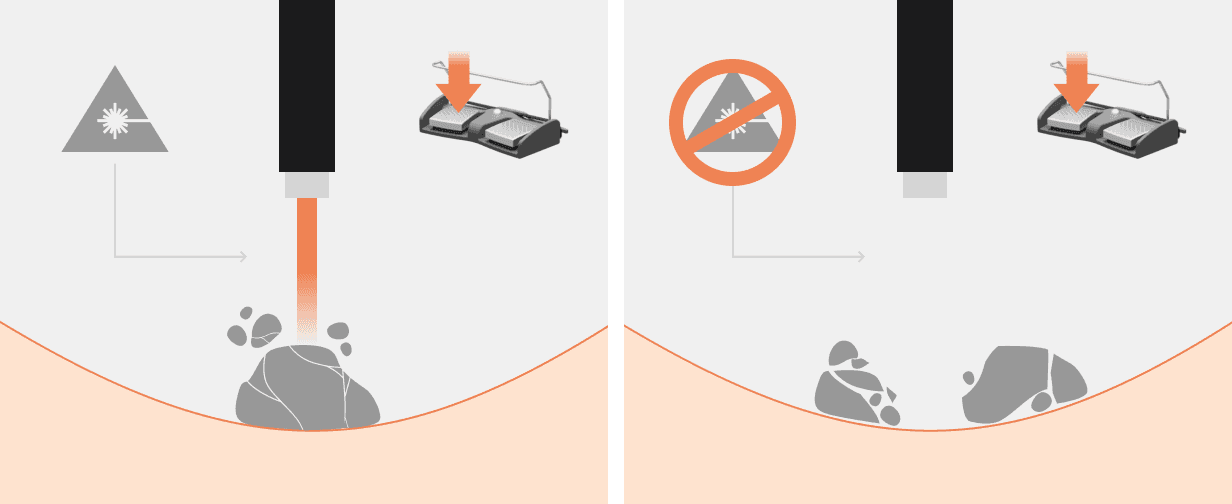

    Tissue Sensor functions by identifying whether hard (stone) or soft (tissue) material is present in front of the surgical fiber tip. During lithotripsy, the laser automatically stops emission upon detecting soft tissue, effectively preventing mucosal injury and enhancing procedural safety.



    Surgeon's Assistant – intelligent parameter control

    Urolase MAX - the first laser system with a built-in “Surgeon’s Assistant” function, automatically adjusting laser parameters based on fiber type and treatment site. Developed from extensive data analysis of global surgical practices to maximize procedural safety.



    Full-spectrum lithotripsy efficiency

    Delivers all lithotripsy techniques—from high-speed dusting to large-fragment fragmentation—enabled by high power output and precision pulse modulation.



    “Fine” Mode – Ultra-Fine Dusting

    Pulverizes stones into fine dust rapidly, ideal for dusting strategies with minimal retropulsion.



    “Ultra” Mode – High-Energy Fragmentation

    Breaks down dense calculi into large fragments for lithoextraction, offering:



    • High fragmentation speed
    • Ultrasonic-level efficiency
    • Reduced operative time
    • Up to 100% stone-free rates



    Bloodless coagulation mode

    Special pulse profile provides wide-area, non-contact coagulation for safe and effective hemostasis in the postoperative field.



    Clean Pulse mode – carbonization-free vaporization

    Allows soft tissue vaporization and vapo-enucleation with no carbonization, preserving visibility and matching CW laser efficiency.



    Dual enucleation modes – vaporization & dissection

    Integrated enucleation platform with two optimized modes, enhanced by computer-modulated pulse shaping for precise control.



    Classic ThuFLEP



    • Efficient soft tissue vaporization
    • Minimal penetration for high surgical precision
    • Excellent hemostasis with virtually no blood loss



    Dissect Mode



    • Thermo-mechanical dissection similar to HoLEP
    • No carbonization
    • Hemostatic performance comparable to ThuFLEP

  • Clinical comparison: Ho:YAG vs. TFL

    Parameters Holmium Laser (Ho:YAG) Thulium Fiber Laser (TFL) Clinical Advantage
    Operation Time
    		 25.5-80.0 min (URS) 25.13-55.0 min (URS) 15-30% faster with TFL
    Stone-Free Rate
    		 66-98% (PCNL)
    90% (URS)

    94.9-100% (PCNL)
    66.7-94.9% (URS)

    		 Higher success with TFL
    Retropulsion Control
    		 Severe: 12.5%
    Mild: 25%    		 Significant: 0%
    Insignificant: 3%    		 Superior stability with TFL
    Hospital Stay
    		 2.1-5.6 days (PCNL)
    2.6 days (URS)    		 1-3 days (URS)
    2-3 days (PCNL)    		 Faster recovery with TFL
    Hematuria/Bleeding
    		 6-41% 0-22% Reduced bleeding risk
    UTI Rate
    		 2-30% 0-9.5% Lower infection risk
    Perforation Risk
    		 1.1-3.8% 0% Enhanced safety
    Severe Complications (Clavien III)
    		 0-7% 0% Eliminates major complications

  • Technical comparison: Ho:YAG vs. TFL

    Parameters
    		 Holmium Laser (Ho:YAG) Thulium Fiber Laser (TFL)
    Ablation Efficiency
    		 Moderate 2–4× higher efficiency
    Retropulsion
    		 High Low
    Fiber Flexibility
    		 Requires ≥200 µm fibers Compatible with 150 µm fibers
    Visibility
    		 Reduced ("snowstorm effect") Clear (minimal vaporization interference)
    Energy Consumption
    		 High (water-cooled system) Low (air-cooled, compact design)
    Frequency Range
    		 Up to 120 Hz Up to 6 kHz

Resourses

Related products

01JSM405D7SG5AYXVQW0XVQ0QX

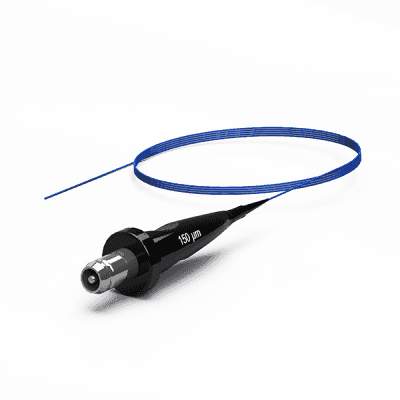

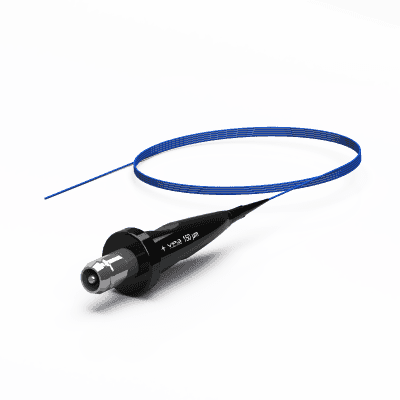

Surgical fiber OnePush
Bare Fiber
01JSKWQBP3333Q2R3XPG0AVB1T

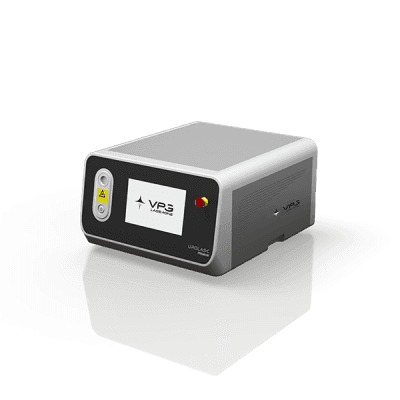

Urolase+ Premium
